Description
Compare the OSX-iDR65E and OSX-iDR50E
The OSX-iDR series offers two digital X-ray configurations with different generator outputs, maximum tube currents, exposure ranges, and listed supply voltages. Compare the models below and discuss your facility’s requirements with NABI Medical Equipment Trading before selecting a configuration.
Flexible positioning for your radiography workflow

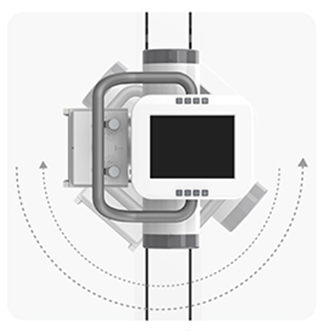

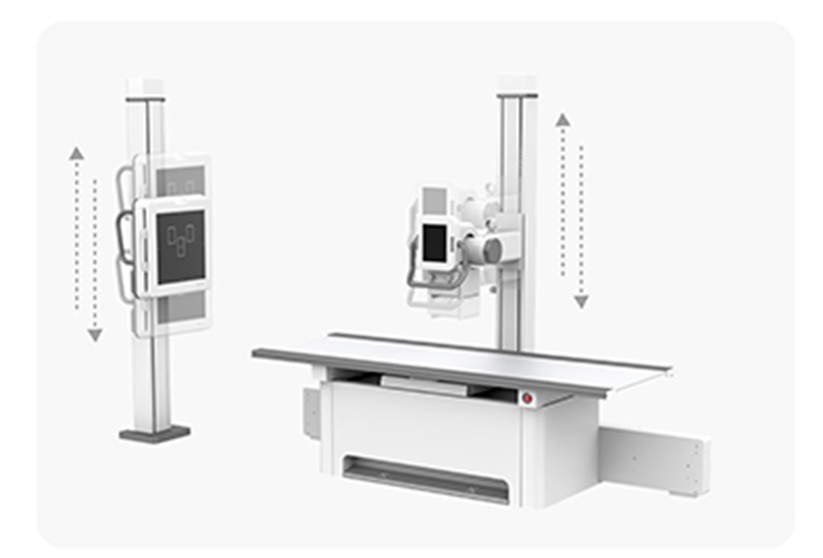

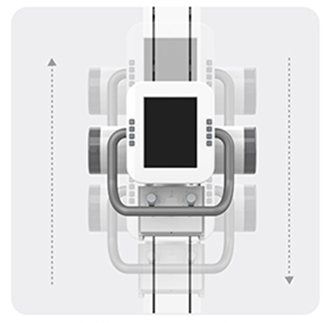

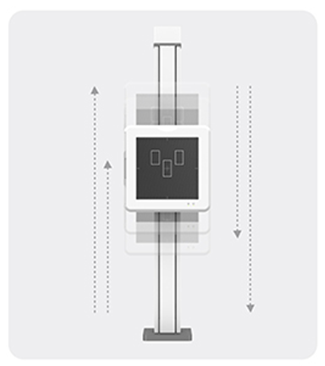

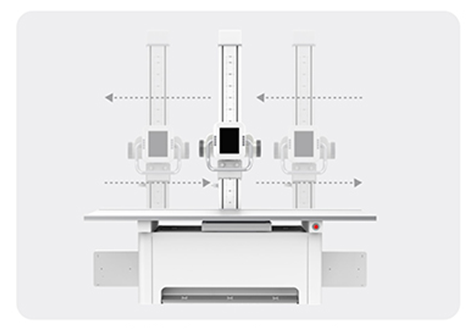

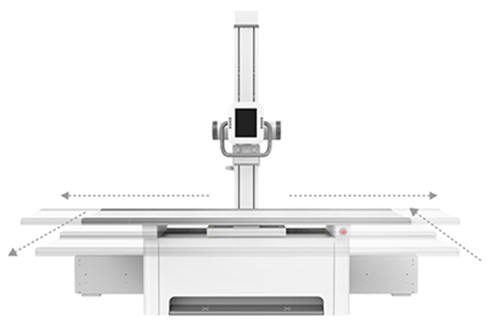

The double-column layout combines a patient table, a tube column, and a vertical detector stand. The supplied positioning illustrations show vertical and horizontal tube movement, tube-head rotation, table movement in two directions, and detector height adjustment. Review the gallery to see these positioning features.
Model comparison
| Specification | OSX-iDR65E | OSX-iDR50E |
|---|---|---|
| Generator output | 65 kW | 50 kW |
| Listed supply voltage | 380 V ±10% | 220 V ±10% |
| Tube voltage range | 40–150 kV | 40–150 kV |
| Maximum tube current | 800 mA | 630 mA |
| mAs range | 0.1–800 mAs | 0.1–630 mAs |
| Exposure time range | 10–6300 ms | 10–5000 ms |
Detector specifications shared by both models
- Detector format: 17 × 17 inches
- Connectivity: Wireless
- Scintillator: CsI
- Pixel matrix: 3072 × 3072 pixels
- Pixel pitch: 139 µm
Additional technical values
The supplied reference lists small and large focal-spot values of 0.6 / 1.2, a detector resolution value of 3.4, and an A/D conversion value of 16. Their associated units are not stated in the reference and should be confirmed in the final technical documentation.

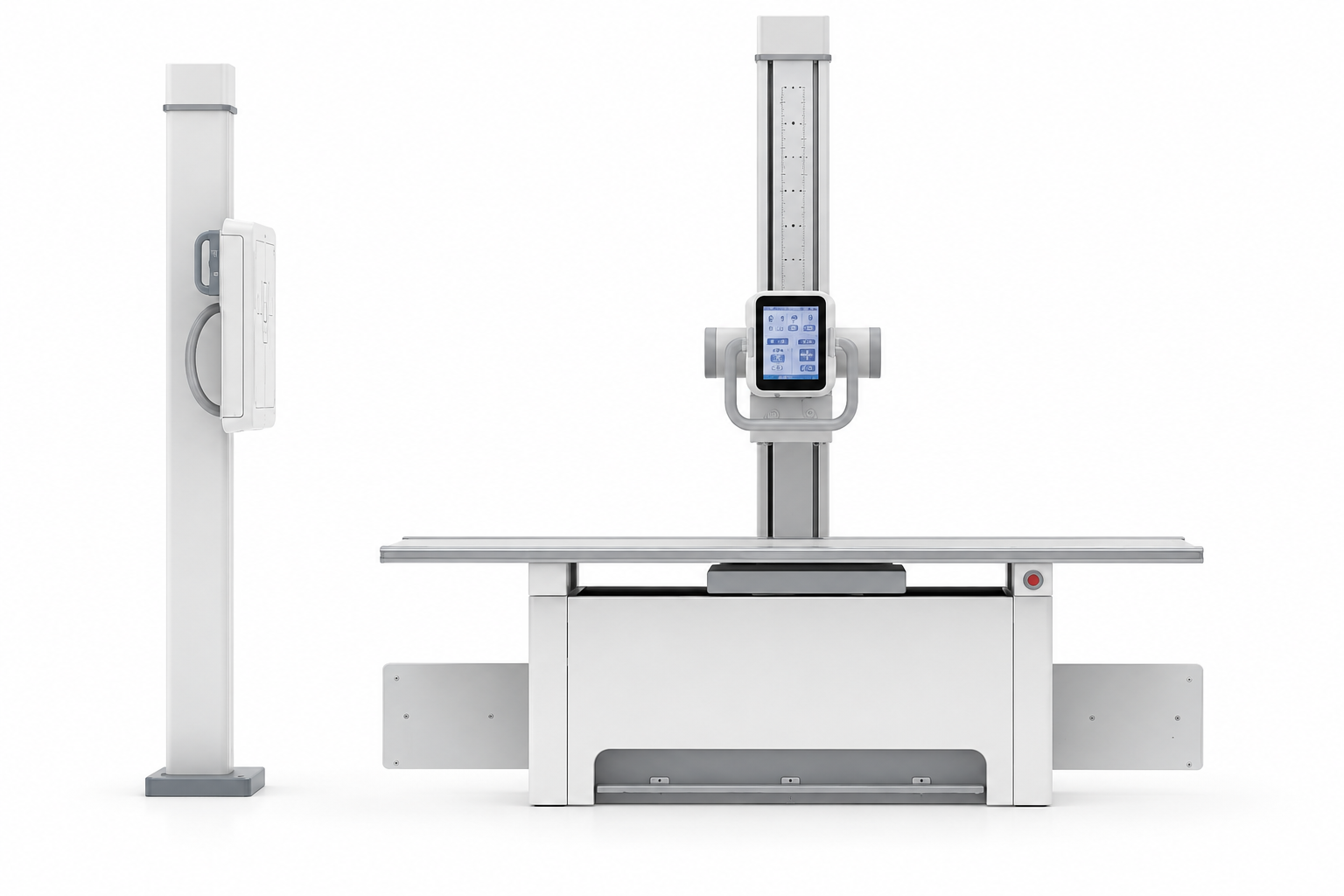

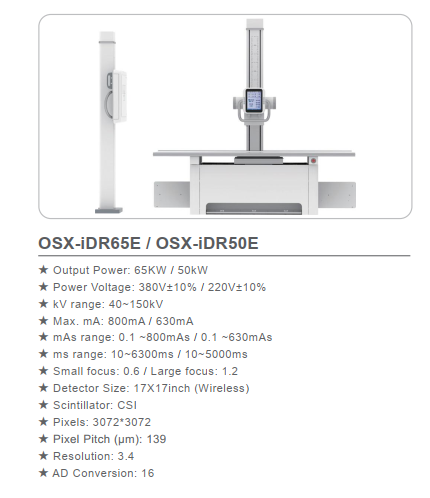

The main product image is an enhanced illustration based on the supplied reference. The gallery also includes the original positioning illustrations and specification reference; final appearance and configuration may vary.
Plan your equipment purchase with NABI Medical
Tell our team which model you are considering, your facility location, and your installation requirements. We will help clarify the proposed configuration, supply scope, site requirements, and applicable service arrangements in your quotation.
Final equipment configuration, accessories, electrical requirements, availability, and delivery arrangements are confirmed in the quotation and technical documentation.
