OSX-DM98B

Description

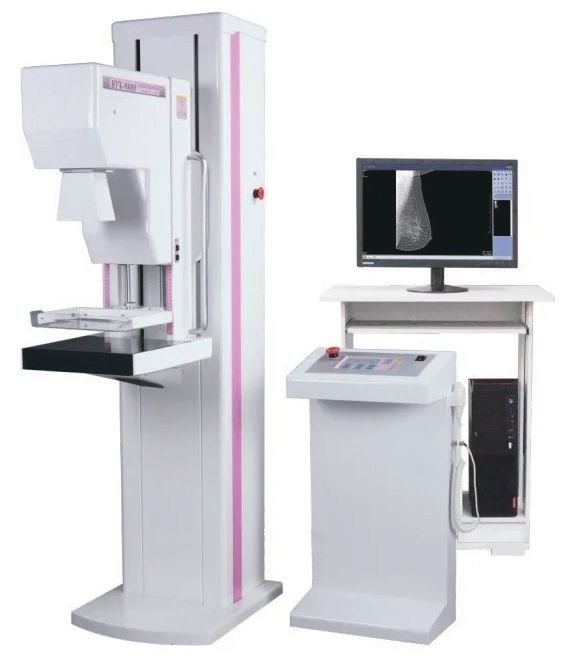

OSX-DM98B is a high-performance digital mammography system designed for precise and reliable breast imaging. With a 6.2 kW power rating and dual focal spot sizes (0.2 / 0.4 mm), it delivers excellent image clarity and diagnostic accuracy. The molybdenum (Mo) target and beryllium (Be) port ensure optimal X-ray quality, while the high-speed anode (2800 rpm) and 12° target angle enhance imaging efficiency.

Equipped with an air-cooled anode and up to 80 kJ (110 kHU) heat storage capacity, it supports stable, continuous operation. The system features a 24 × 30 cm amorphous silicon detector with a 2816 × 3528 pixel matrix, 85 μm pixel size, and up to 6.0 Lp/mm spatial resolution for detailed imaging. With a ≥35% DQE at 4 Lp/mm and 14-bit dynamic range output, it ensures high sensitivity and superior image quality for accurate diagnosis.
