Description
Compact portability. Two power configurations.
The OHH series combines a compact X-ray source with remote exposure-control capability and wireless communication. Choose the 450 W or 900 W configuration and compare the available tube-current ranges to plan a system that matches your equipment requirements.
Product highlights
- Compact, portable format: a listed weight of 3.4 kg or less supports convenient transport and equipment setup.
- Two output options: 450 W with a 2–5 mA range, or 900 W with a 2–10 mA range.

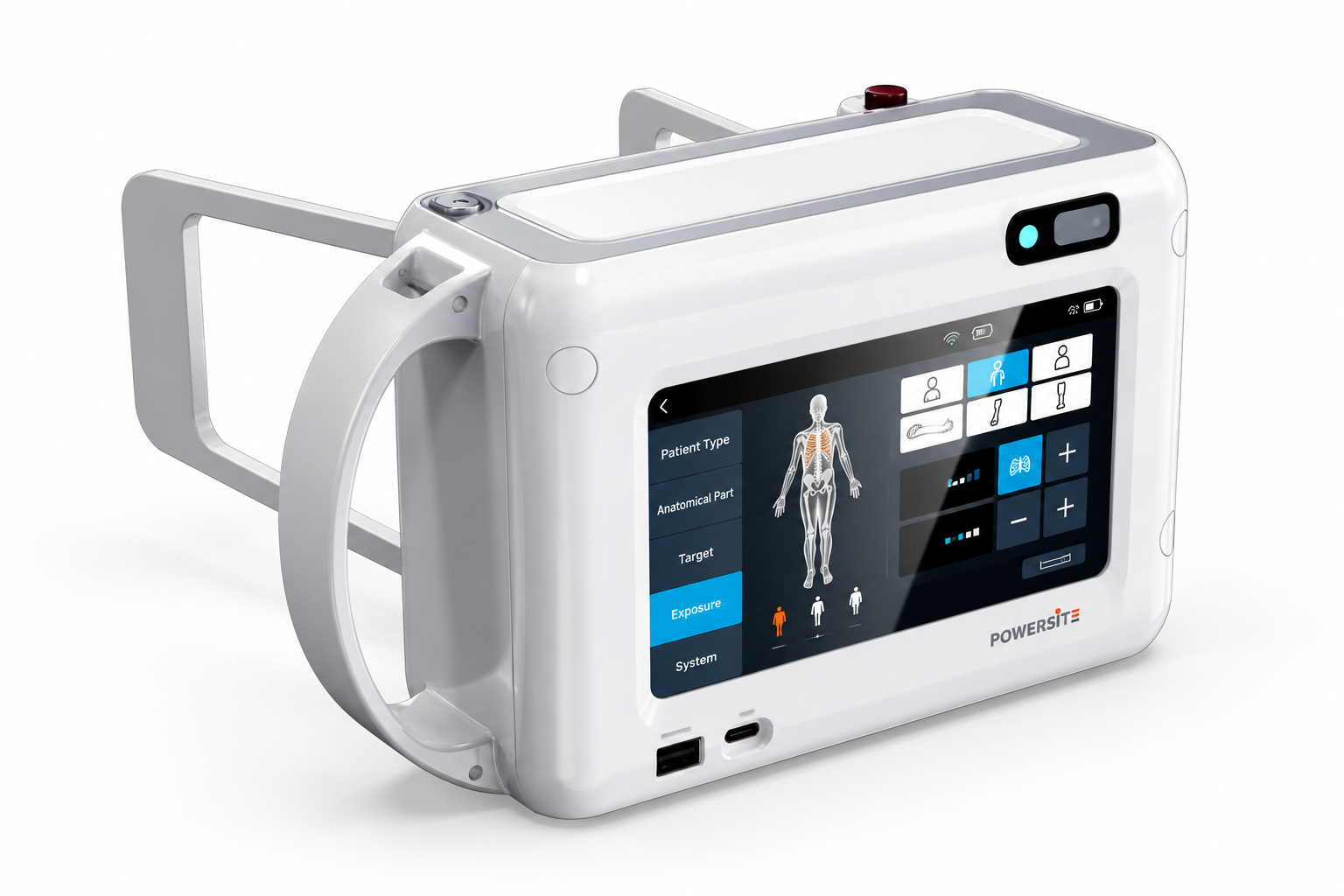

- 7-inch touchscreen: view and select from 30+ APR options using the integrated display.
- Interchangeable battery design: the illustrated battery arrangement supports battery replacement; confirm battery and charger inclusions in your quotation.

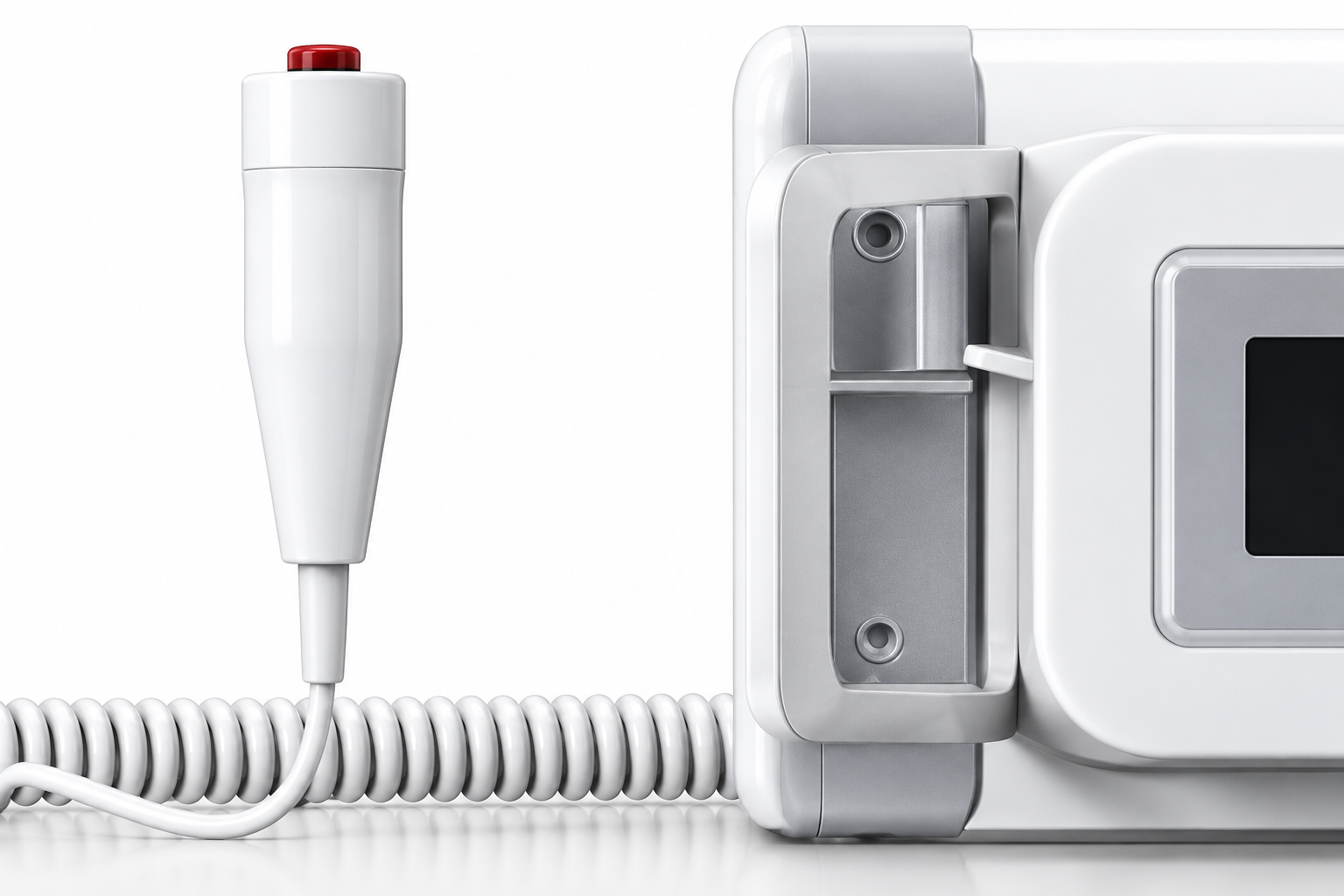

- Dedicated controls and connections: the reference identifies a power control, exposure button, hand-switch connection, charging port, and communication interface.
- Flexible communication: RS-232 and Wi-Fi interfaces support integration planning.
- Remote exposure-control capability: confirm compatible controls and the proposed configuration with our team.
- Handheld or stand-mounted configuration: discuss the intended setup and mounting requirements before ordering.
- Battery operation: the supplied reference states 300+ exposures per charge. Actual endurance depends on exposure settings, use, and battery condition; confirm the applicable test conditions for your configuration.
Compare the two models
| Specification | OHH-450 | OHH-900 |
|---|---|---|
| Nominal power | 450 W | 900 W |
| Tube voltage range | 40–90 kV | 40–90 kV |
| Tube current range | 2–5 mA | 2–10 mA |
| Focal spot size | 0.8 mm | 0.8 mm |
| Anode target angle | 19° | 19° |
| Display | 7-inch touchscreen | 7-inch touchscreen |
| APR selections | 30+ | 30+ |
| Battery design | Interchangeable | Interchangeable |
| Communication interfaces | RS-232 / Wi-Fi | RS-232 / Wi-Fi |
| Listed operating temperature | −20°C to +40°C | −20°C to +40°C |
| Listed dimensions (L × W × H)* | 286.4 × 218.4 × 157.7 mm | 286.4 × 218.4 × 157.7 mm |
| Listed weight | ≤3.4 kg | ≤3.4 kg |
| Configuration options | Handheld / stand-mounted | Handheld / stand-mounted |
*Overall length requires confirmation: the supplied specification table lists 286.4 mm, while the accompanying drawing labels 266.4 mm. Confirm the final dimensioned drawing before planning mounting or installation.
Plan your complete configuration with NABI Medical
This listing is for an X-ray source. A detector and mounting stand shown in application images are configuration examples; their inclusion must be confirmed in the quotation. Tell our team your preferred model, existing detector or workstation, intended setup, and facility location so we can clarify the proposed equipment configuration and integration requirements.
Pricing, availability, included accessories, delivery, training, and applicable technical-support arrangements are confirmed in the quotation. Final specifications and compatibility are subject to the technical documentation for the ordered configuration.
Product and gallery images are enhanced illustrations based on the supplied references. Final appearance and configuration may vary.
