Description
Digital radiography configured around your workflow
The OFPD1417 Digital X-Ray Flat Panel Detector offers a 14 × 17-inch versatile rectangular format for facilities planning a digital radiography installation or detector upgrade. Its 2560 × 3072-pixel matrix, CsI scintillator and 16-bit A/D conversion provide a clear technical basis for comparing detector options.
Select Wired for a dedicated Gigabit Ethernet data connection, or Wireless when positioning flexibility is a priority. NABI Medical Equipment Trading can help review the detector configuration, existing X-ray equipment and acquisition workstation requirements before quotation.
Key features
- 35 × 43 cm nominal image size in a 14 × 17-inch format.
- CsI scintillator with a-Si detector technology.
- 139 μm pixel pitch and a 2560 × 3072-pixel matrix.
- 16-bit conversion with a listed spatial resolution of 3.6 lp/mm.
- Two connection options: Wired and Wireless.
- A listed acquisition time of 2.5 seconds for both configurations.
- 1.5 cm listed housing thickness and an IP54 ingress protection rating.
Serix Acquisition Software
The software used is Serix Acquisition Software, locally developed by NABI Medical Equipment Trading.
Discuss your facility’s acquisition workstation, software configuration and integration requirements with our team so that the proposed setup matches your workflow.
Compare the two configurations
| Specification | Wired | Wireless |
|---|---|---|
| Connection | Gigabit Ethernet (GigE) | IEEE 802.11ac wireless |
| Nominal image size | 35 × 43 cm (14 × 17 in) | 35 × 43 cm (14 × 17 in) |
| Pixel matrix | 2560 × 3072 pixels | 2560 × 3072 pixels |
| Image acquisition time | 2.5 seconds | 2.5 seconds |
| Battery standby | Not specified for wired operation | 10 hours with optional battery configuration |
| Acquisition software | Serix Acquisition Software | Serix Acquisition Software |
Technical specifications
| Parameter | Specification |
|---|---|
| Model | OFPD1417 |
| Nominal image size | 35 × 43 cm (14 × 17 in) |
| Pixel matrix | 2560 × 3072 pixels |
| Detector technology | Amorphous silicon (a-Si) |
| Scintillator | Cesium iodide (CsI) |
| Pixel pitch | 139 μm |
| A/D conversion | 16-bit |
| Minimum detectable dose | 14 nGy |
| Maximum linear dose | 110 μGy |
| Spatial resolution | 3.6 lp/mm |
| X-ray voltage range | 40–150 kV |
| Overall dimensions | 38.3 × 46.0 × 1.5 cm |
| Listed detector weight | 3.1 kg |
| Adapter input | 100–240 V AC, 50–60 Hz |
| Adapter output | 24 V DC, 60 W |
| Power dissipation | 20 W |
| Housing material | Carbon and alloy |
| Operating temperature | 5–35 °C |
| Operating humidity | 10–75% RH |
| Ingress protection rating | IP54 |
Configuration notes: The 10-hour battery figure is an optional standby rating, not continuous imaging time. Listed weight is a model-level value; the weight of the supplied configuration and battery inclusion will be confirmed in your quotation. Final accessories, software scope and equipment compatibility are reviewed for your installation.

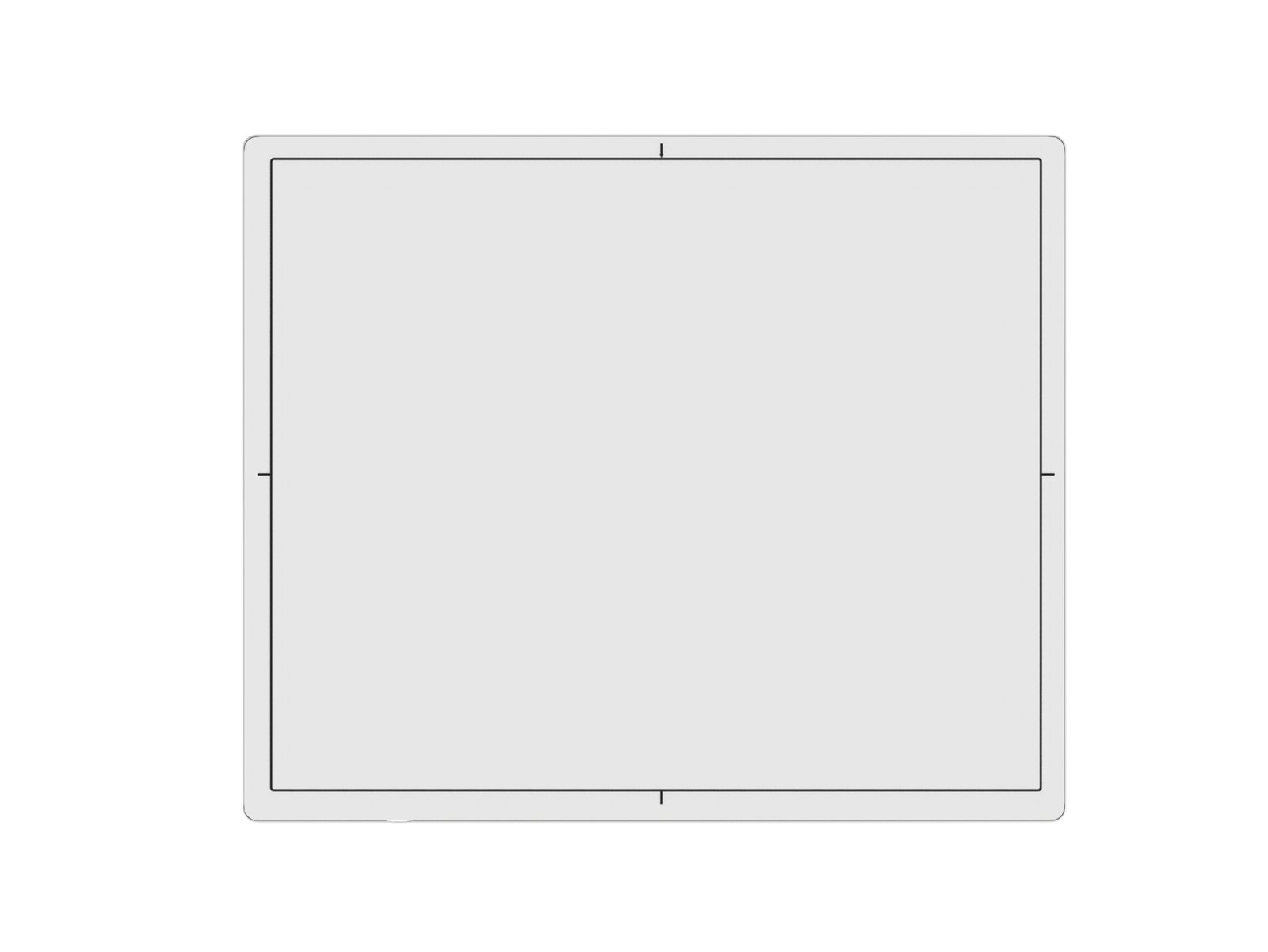

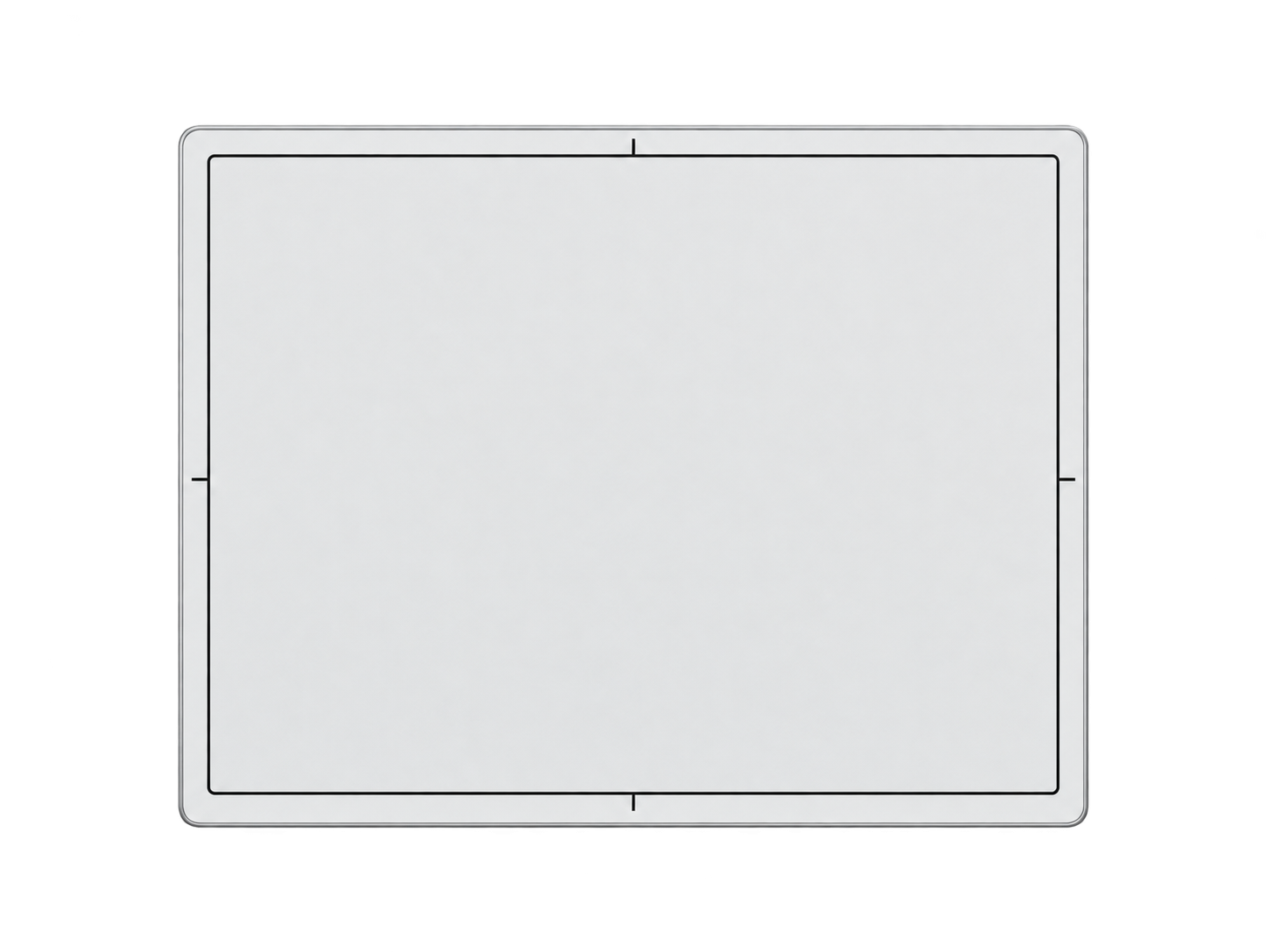

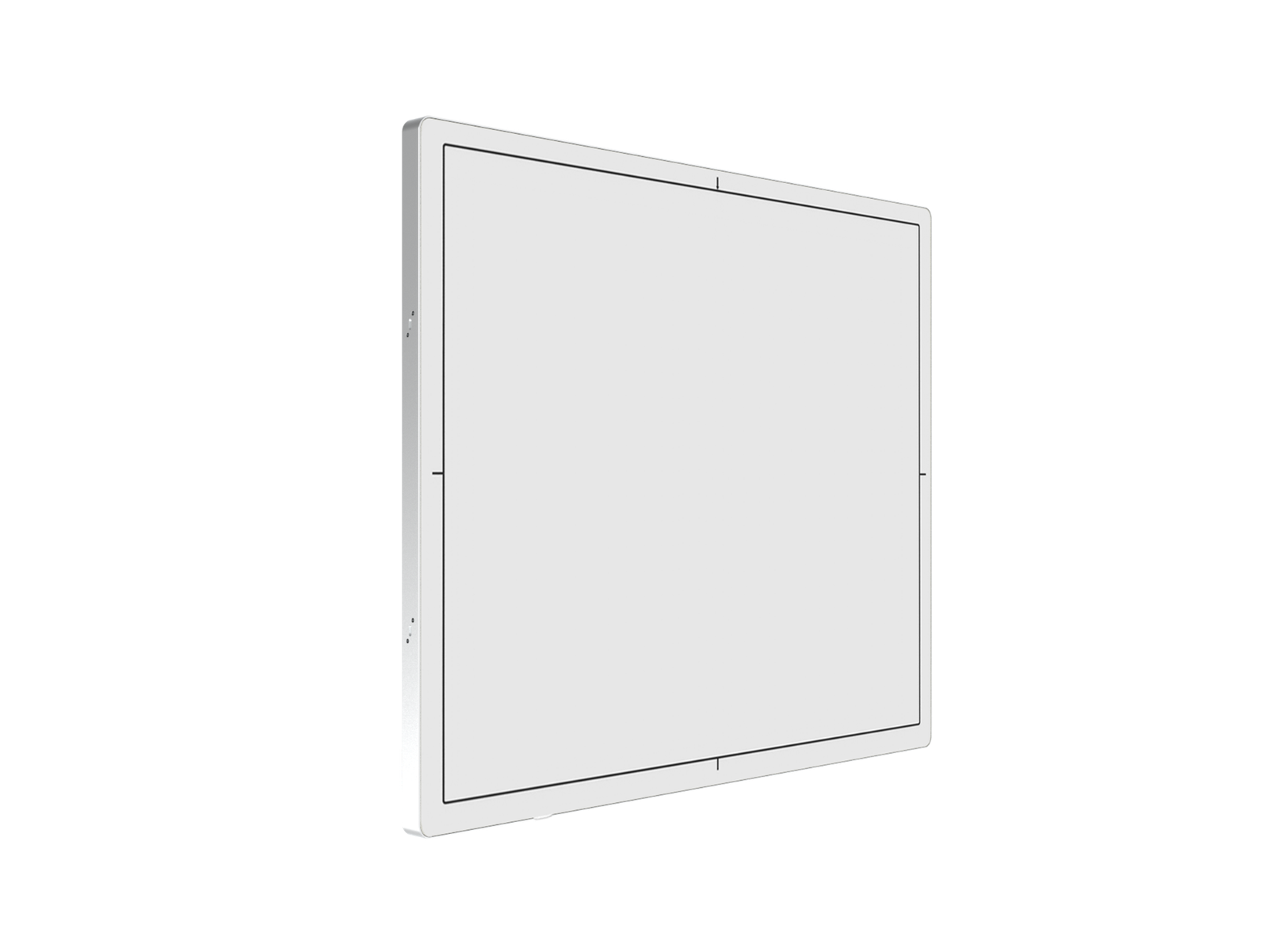

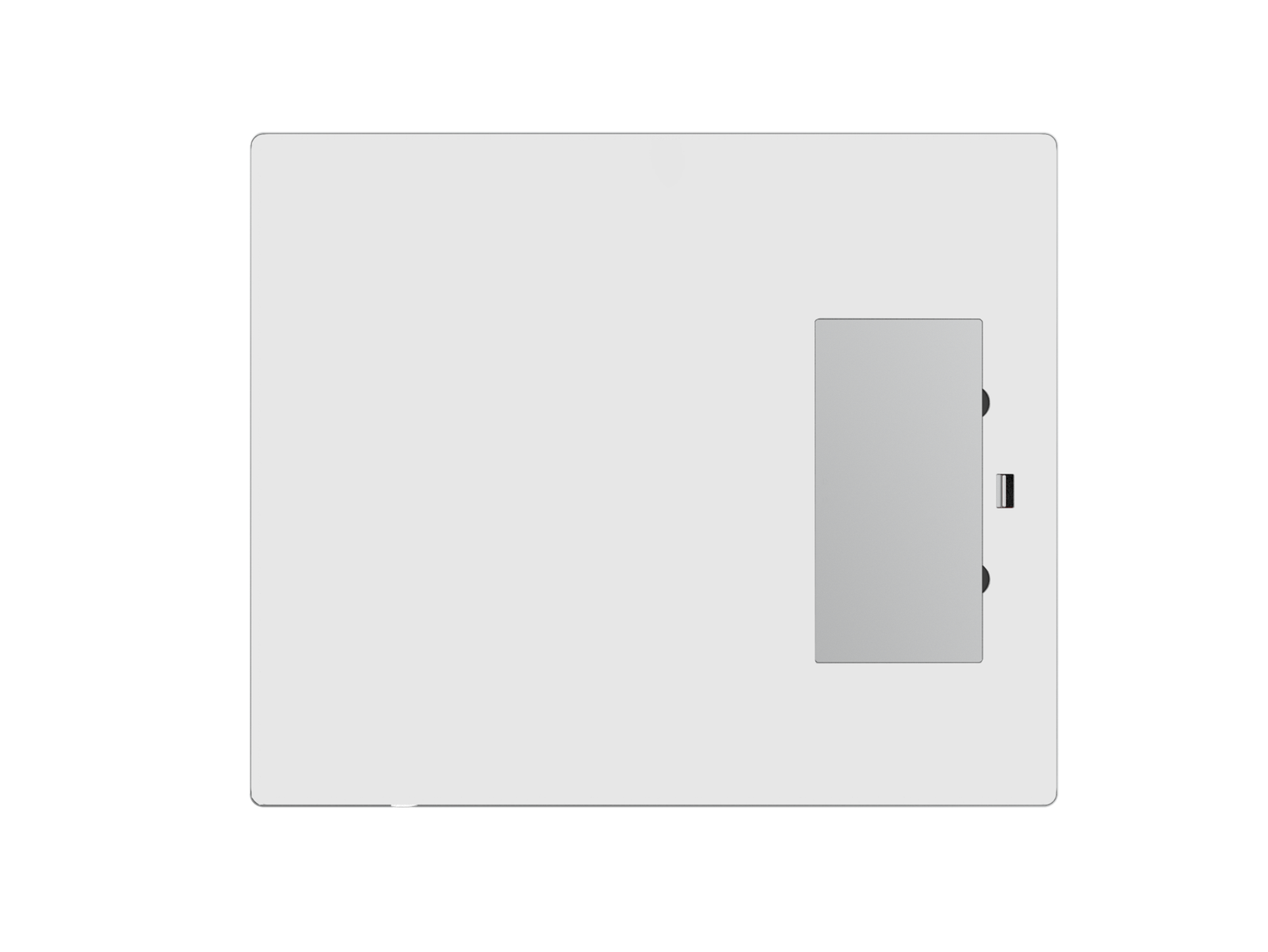

Product images include enhanced illustrations based on the supplied references. Actual housing and accessories may vary with the selected configuration.
Plan your detector upgrade with NABI
Select a connection option above and request a quotation. Share your X-ray system model, detector holder dimensions and preferred workflow so our team can help define the appropriate equipment and software configuration.
